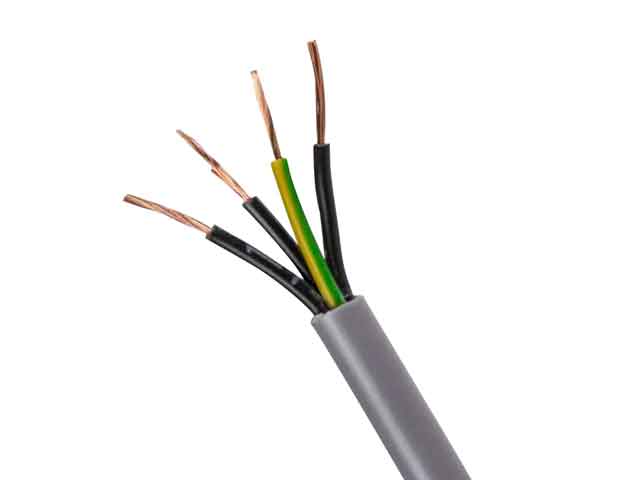

YY Control Cable
The YY control cable is widely used in instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement with no tensile load.
YY Control Cable Application Standard:
VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54) Flame Retardant according to IEC/EN 60332-1-2
Test Voltage:
AC 2000v 50HZ
Technical Specifications
During installation -5°C to +50ºC
Fixed Installation: -20°C to +90°C
Maximum short-circuit temperature: 250ºC (max. 5 s).
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter
Black with White number
From 3 cores: Black with White number + Green/Yellow
Colour-coded cores available upon request
Grey
0.6/1KV CU XLPE Cable Construction
| Item Name | Description |
|---|---|
|
Conductor |
Plain Class 5 flexible copper conductor according to IEC60228 |
|
Insulation |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
|
Outer sheath |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
