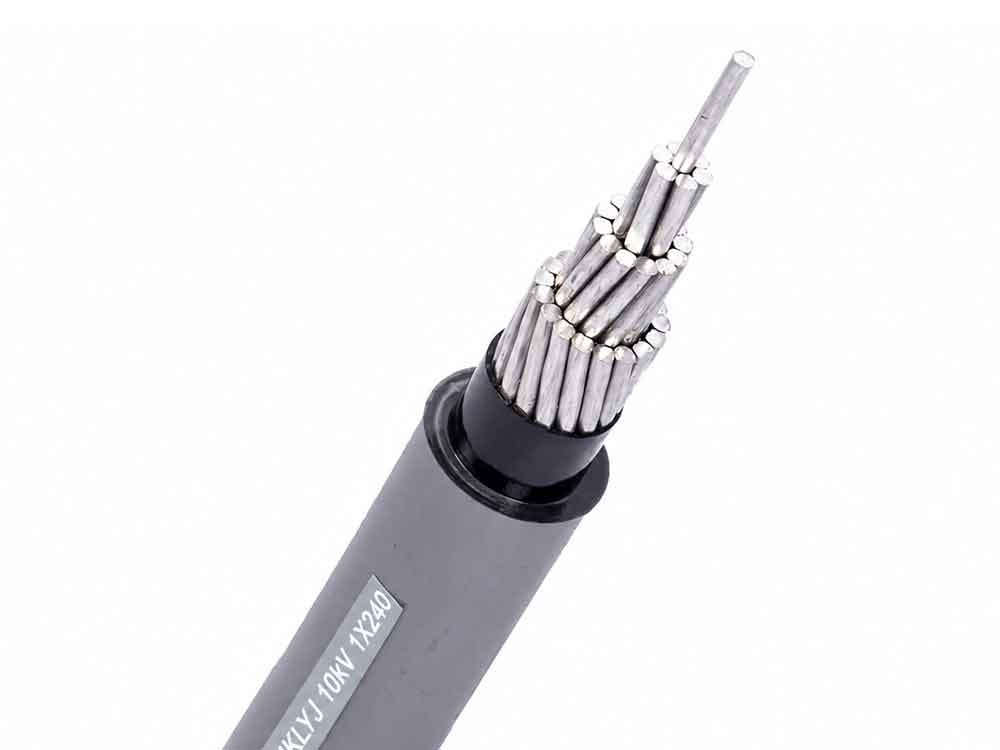

ABC Cable
Reliable ABC Cable solutions for power distribution, rural electrification, and overhead transmission. Custom sizes, fast delivery, and international standards available.
Our aerial bundled cables are lightweight and have a simple structure. It is easy for you to transport and install these cables. Compared to bare conductor cables, they offer better insulation properties and higher energy efficiency They are widely used to supply power to both urban and rural areas. They are also an ideal short-term power cable solution.
Contact us for more technical and pricing information on ABC cables.
ABC Cable Types
We can classify these cables by the number of cores and conductor type.
Types by Core Numbers
ABC cables can consist of different numbers of cores, such as single core, 2 cores, 3 cores, and 4 cores. We shall consider the number of cores based on the number of lines in the power system.

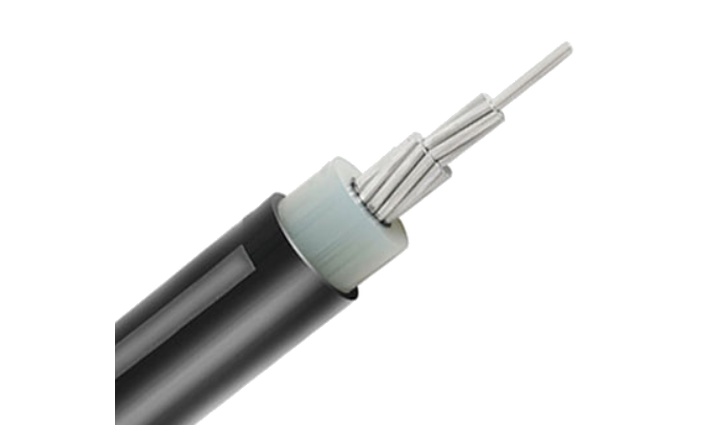

1 core ABC Cable (Single Core)
Consists of one insulated conductor. It is used to supply power to villages, homes, street lights, and temporary construction sites in the field.

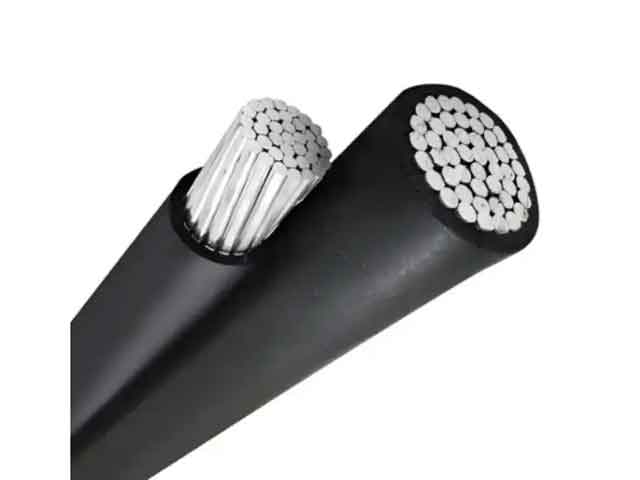

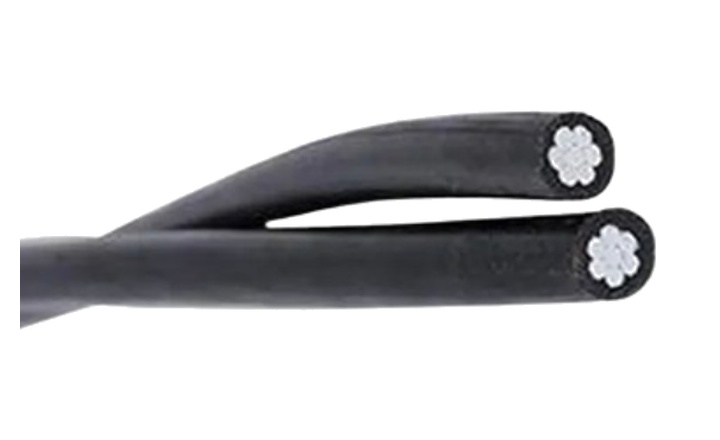

2 Core ABC Cable (Duplex)
Has two conductors, one as the neutral and the other as the phase. It is mainly used for single-phase power distribution systems.

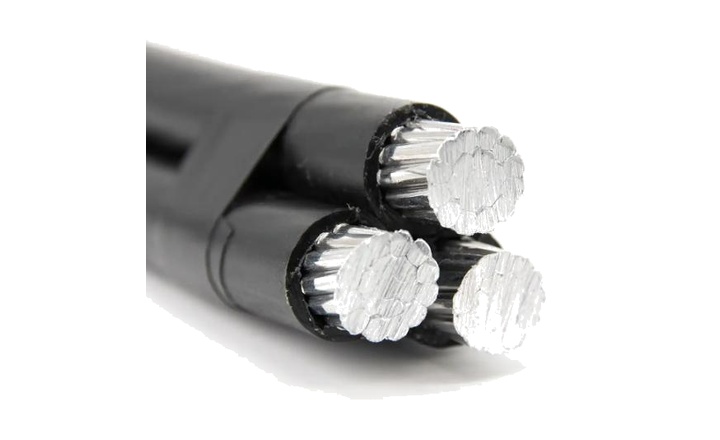

3 core ABC Cable (Triplex)
Has three conductors: two phase conductors and one neutral conductor. It is suitable for single-phase distribution systems and commercial applications.

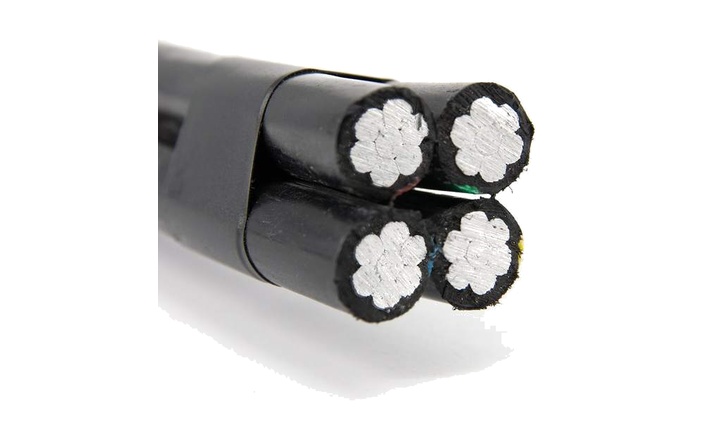

4 core ABC Cable (Quadruplex)
Has four insulated conductors. Three conductors are phase wires, and one conductor is the neutral wire. They are used in 3-phase 4-wire power grids.
Types by Conductor Types
Different conductor types includes AAC（all aluminum conductor）, AAAC（aluminum alloy conductor）, ACSR （aluminum conductor steel reinforced）. These conductors have different electrical conductivity, mechanical strength, and corrosion resistance.

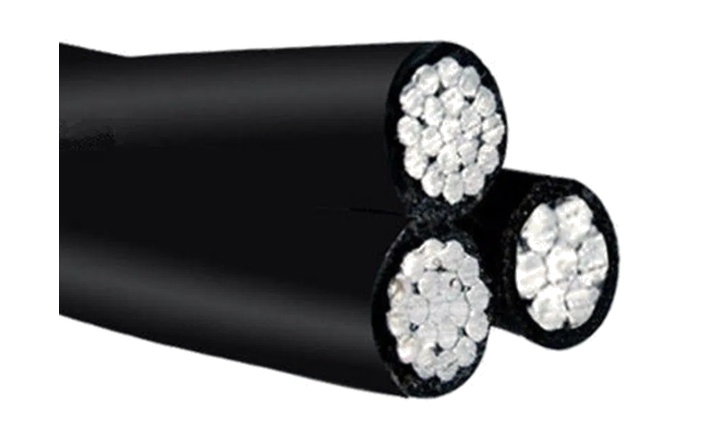

AAC (All Aluminum Conductor )
The most commonly used conductor. It has the advantages of low cost, light weight and strong corrosion resistance.

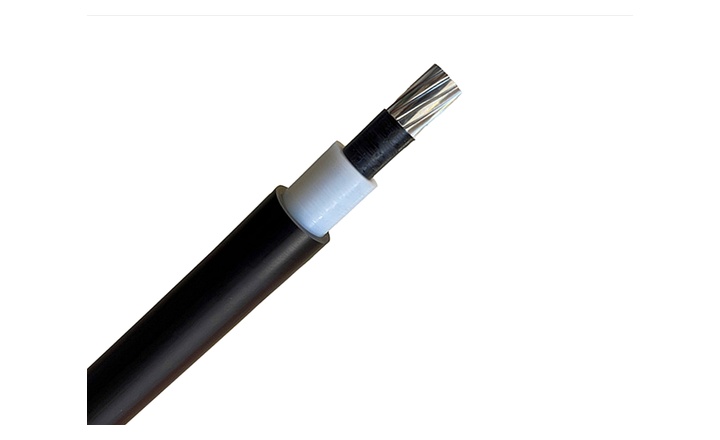

AAAC (Aluminum Alloy Conductor)
Features higher strength, stronger corrosion resistance, and excellent durability. It is particularly suitable for large-scale power supply systems with long distances.

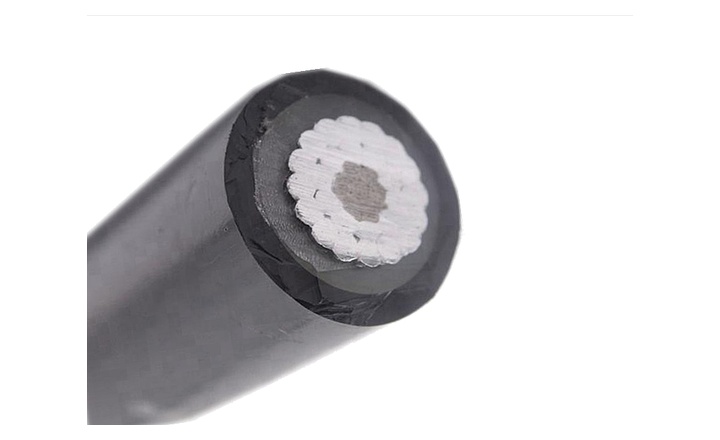

ACSR (Aluminum Conductor Steel Reinforced)
Has high tensile strength, minimal sag, and corrosion resistance. It is ideal for long-span long distance power transmission and distribution.
Applications
ABC cables are lightweight and cost-effective, have good insulation, strong corrosion resistance, and are easy to transport and install. They are suitable for urban power supply, suburban electrification, industrial park power supply, salty spray areas powering, short-term project power supply, and power supply in forested areas.

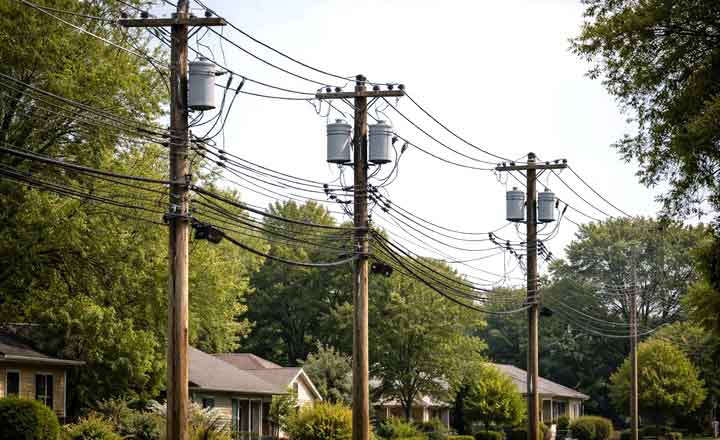

Urban Power Supply
Used for street power supply and lighting power supply. The insulation of these cables reduces the possibility of short circuits and improves safety and stability.

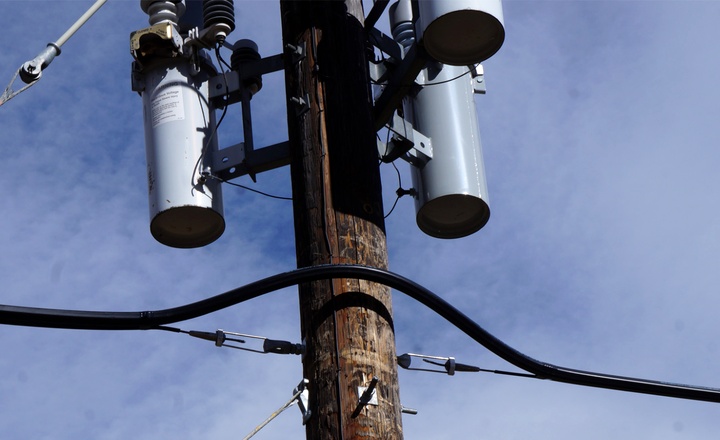

Suburban Electrification
They are lightweight, easy to install, inexpensive, and not easily stolen. They are suitable for supplying power to remote suburban areas.

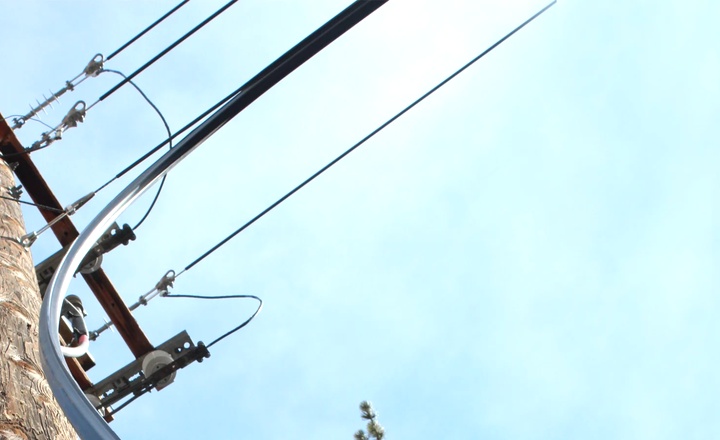

Industrial Park Power Supply
The insulation of these cables can protect cables against short circuits, external damage, and corrosion. Suitable for industrial parks with heavy pollution, salt spray, trees.

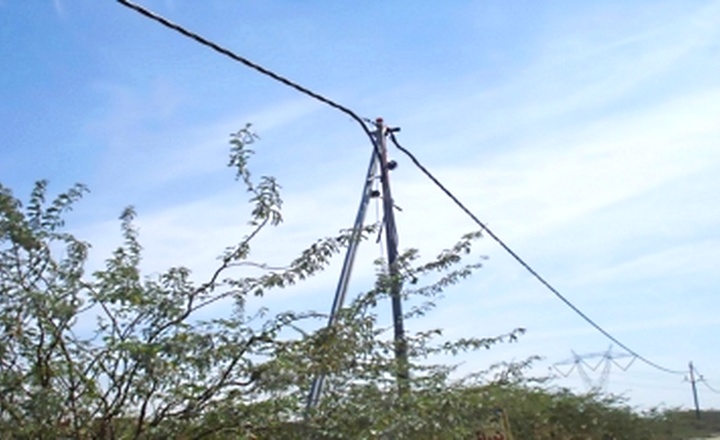

Salt Spray Areas Powering
High-performance insulation effectively isolates the aerial bundled cables from salt spray, moisture, and chloride corrosion, and delaying conductor oxidation and corrosion.

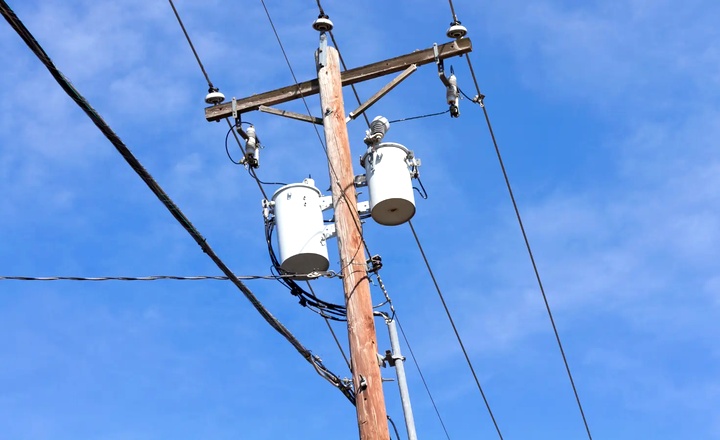

Short-term Project Power Supply
Easy, convenient, low-cost, and quick to install. You can complete the installation in a short time. They are ideal for powering short-term projects.

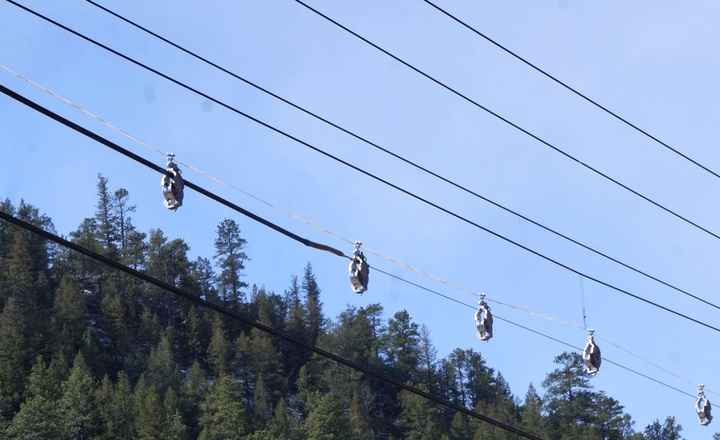

Forested Areas Power Supply
Insulated ABC cables will not experience short circuits or leakage due to contact with tree branches. These insulated cables are suitable for areas with many trees.
ABC Cables Specifications
Our ABC cables can be designed according to different parameters. The main parameters are voltage level, conductor material, insulation material, and number of cores.
| Item Name | Parameters | Notes |
|---|---|---|
|
Voltage Level |
Mostly 0.6/1KV, MV also available. |
Based on your power system voltage |
|
Conductor Material |
AAC, AAAC, ACSR, Cu |
Installation environments & budgets |
|
Conductor Size |
16mm2-240mm2 |
Large size for high current. |
|
Insulation Material |
XLPE/PE |
XLPE has better thermal performance (90℃) |
|
Core Numbers |
1,2,3,4 |
|
Key Features
ABC cables are lightweight, making them easy to transport and install. The insulation of these cables isolates the cable conductors from the outside environment, reducing the possibility of electric shock and short circuits. They offer excellent safety and operational reliability.
High Safety
The insulation isolates the cable conductors from external contacts, greatly reducing the risk of electric shock or short circuits. They offer a high level of safety.
High Reliability
Have insulation protection, making them less prone to grounding faults and short-circuit power outages. ABC cables have high operational reliability.
Easy Installation
Lightweight, making them easy to transport and install. Installation does not require trenching, resulting in short installation time, low difficulty, and low cost.
Harsh Environments
The cable insulation material has good UV resistance, thermal performance, moisture & chemical resistance. It is suitable for harsh environments.
Electrical Performance
It has advantages such as low inductance and high capacitance, low line impedance, small voltage drop, and strong current carrying capacity.
Standards & Compliance
Our ABC cables are designed to meet international standards, BS standards, and GB standards. They offer safety, durability, and reliability in a wide range of applications.
- GB/T 125527
- GB/T 14049
- IEC 60502
- IEC 228 / IEC 228A
- NFC 33-209
- BS 7870-5
- ASTM B-230/B-231, B-399
- SANS（South African National Standards）
- AS/NZS 3560.1
Need Detailed Specifications?
Get complete technical data, sizes, and pricing for your projects.
How to Choose the Right ABC Cable
You can refer to the following steps to select the parameters of ABC cables. ABC cables should meet usage requirements, installation environment, and technical specifications.
1.Consider Installation Environment
Assess environmental factors, including ambient temperature, humidity, ultraviolet exposure, and mechanical stress.
2.Determine Voltage Level & Current
Select the appropriate voltage rating based on your power distribution system voltage.
3.Choose Conductor Type
For short spans, both AAC and AAAC conductors are suitable. When the span exceeds 50 meters, use ACSR.
4.Determine conductor sizes
The conductor cross-sectional area is determined by the current carrying capacity.
5.Choose Insulation Material
Choose insulation materials based on the usage environment.
6.Cable Construction
Determine the number of cable cores
7.Verify mechanical and electrical performance
Cable tensile strength, heat resistance (-15℃ ~ +90℃), and UV resistance must meet the usage requirements.
FAQ ( Frequently Asked Questions)
What is the ABC cable used for?
The full form of ABC cables is aerial bundled cable. They are specific electrical cables used in overhead distribution systems.They are widely used for urban and rural areas. The biggest difference between insulated aerial bundled cables and bare conductor cables is that ABC cables have an insulation layer.
What is the voltage rating of the ABC cable?
The voltage ratings are low voltage（up to and including 0.6/1kv）and medium voltage ( up to and including 35kv).
What conductor materials are used in ABC cable?
Common conductor materials include AAC（all aluminum conductor）, AAAC（aluminum alloy conductor）, ACSR （aluminum conductor steel reinforced）.
What are the advantages of ABC cable?
They are lightweight and have a simple structure. They are easy to transport and install. Installation is simple, quick, and inexpensive.
Can ABC cable be customized?
Yes, they can be customized based on voltage, conductor type, conductor size, insulation type, and project requirements.
How can I choose the right ABC cable?
You can refer to the above selection guidelines or contact us for professional recommendations.
Recommended ABC Cable Resources
Related Products
Low voltage cable for buildings, factories, infrastructure and distribution systems.
Medium voltage cables for power distribution, substations, industrial plants, utilities, renewable energy projects
Flexible control cable for industrial automation, equipment wiring, signal control and electrical control panels.

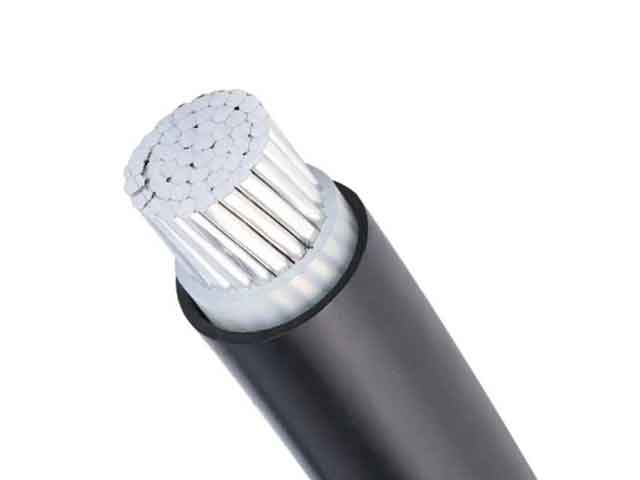

XLPE insulated power cable for low voltage and medium voltage power distribution and transmission.
