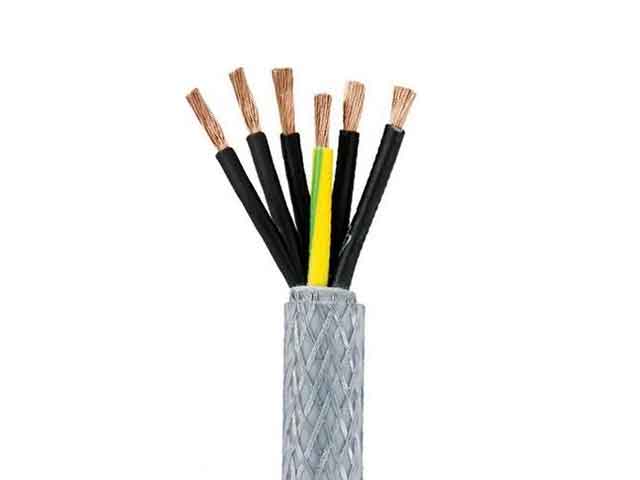

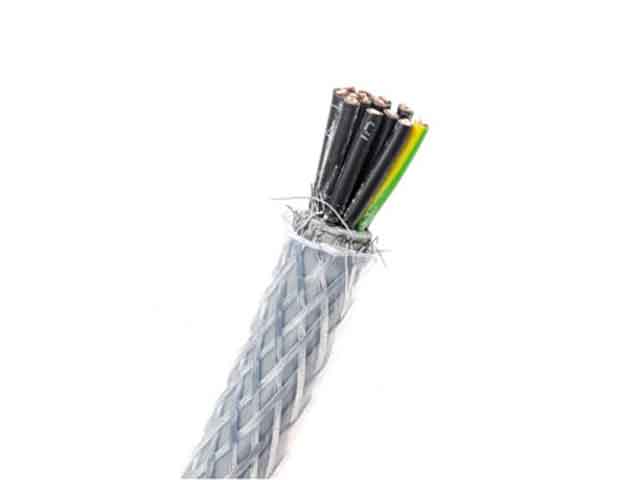

SY Control Cable
SY control cable is used in industrial settings for flexible connections between fixed and mobile equipment, like conveyor belts, production/assembly lines, robotics, and machine tools.
0.6/1KV CU XLPE Cable Applications:
0.6/1KV Cu XLPE cables are used for power distribution system and circuit transmission for urban power grids, industrial and mining power supply, residential community power distribution, and small factory internal power distribution. Our 0.6/1KV Cu XLPE cables are suitable for fixed installation scenarios such as indoors, cable trenches, pipelines, and tunnels. They can also be buried in loose soil, but it cannot withstand external forces.
Industrial Automation
Connecting sensors, controllers, and actuators in automated systems.
Conveyor & Assembly Lines
Linking machinery that moves or requires flexibility.
Machine Tools
Providing control and power to moving parts.
Instrumentation & Control Panels
Flexible interconnects within industrial control setups.
SY Control Cable Construction Technical Specifications
Standard
VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)
Flame Retardant according to IEC/EN 60332-1-2
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Bending Radius
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter
Conductor
Plain Class 5 flexible copper conductor according to IEC60228
Insulation Color
Black with White number
From 3 cores: Black with White number + Green/Yellow
Colour-coded cores available upon request
Outer Sheath Color
Transparent
SY Control Cable Construction
| Item Name | Description |
|---|---|
|
Conductor |
Plain Class 5 flexible copper conductor according to IEC60228 |
|
Insulation |
PVC (Polyvinyl Chloride) |
|
Inner sheath |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
|
Armour |
Galvanised Steel Wire Braid) |
|
Outer sheath |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
SY Control Cable Application Standard:
VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)
Flame Retardant according to IEC/EN 60332-1-2
Test Voltage:
AC 50HZ 2000V
Technical Specifications
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter
Black with White number
From 3 cores: Black with White number + Green/Yellow
Colour-coded cores available upon request
Transparent
SY Control Cable Construction
| Item Name | Description |
|---|---|
|
Conductor |
Plain Class 5 flexible copper conductor according to IEC60228 |
|
Insulation |
PVC (Polyvinyl Chloride) |
|
Inner sheath |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
|
Armour |
Galvanised Steel Wire Braid) |
|
Outer sheath |
PVC （Polyvinyl chloride） Optional: LSZH polyolefin (Low Smoke Zero Halogen), MDPE, HDPE |
