Solar Cable H1Z2Z2-K
Our solar cable H1Z2Z2-K is a durable, low-smoke, halogen-free, UV-resistant cable for photovoltaic systems. The main application of our solar cable H1Z2Z2-K is to connect solar panels and junction boxes and inverters. You can install the solar cable H1Z2Z2-K indoor and outdoor.
Solar Cable H1Z2Z2-K Applications:
Our solar cable H1Z2Z2-K is a durable, low-smoke, halogen-free, UV-resistant cable for photovoltaic systems. The main application of our solar cable H1Z2Z2-K is to connect solar panels and junction boxes and inverters. You can install the solar cable H1Z2Z2-K indoor and outdoor.
Connecting solar panels to form strings.
Linking module strings to DC/AC inverters
Flexible enough for movable setups in solar farms, rooftop systems, and floating plants.
Can be used in industrial, agricultural, and potentially explosive environments.
Solar Cable H1Z2Z2-K Construction Technical Specifications
Standard
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2
Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3,
Voltage Rating Uo/U
AC: 1000/1000V
DC: 1500/1500V
Temperature Rating
Fixed: -40°C to +90°C
Bending Radius
Fixed: 5 x overall diameter
Conductor
Tinned copper flexible conductor, Class 5 according to IEC60228
Sheath Color
Black

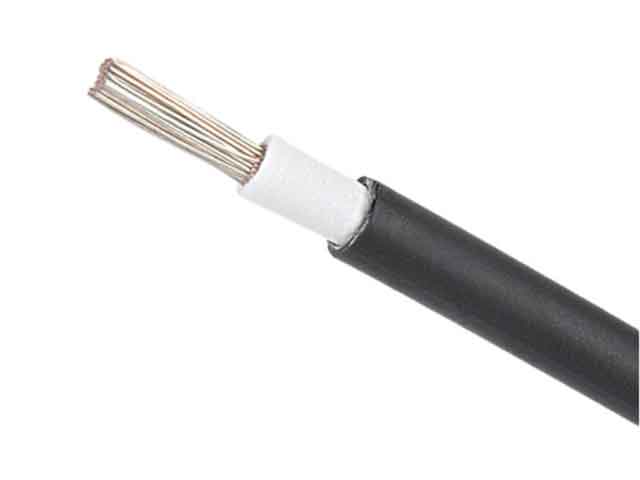

Solar Cable H1Z2Z2-K Construction
| Item Name | Description |
|---|---|
|
Conductor |
Class 5 flexible tinned copper conductor |
|
Insulation |
Halogen-free cross-linked compound |
|
Sheath |
Halogen-free cross-linked, flame retardant compound |
