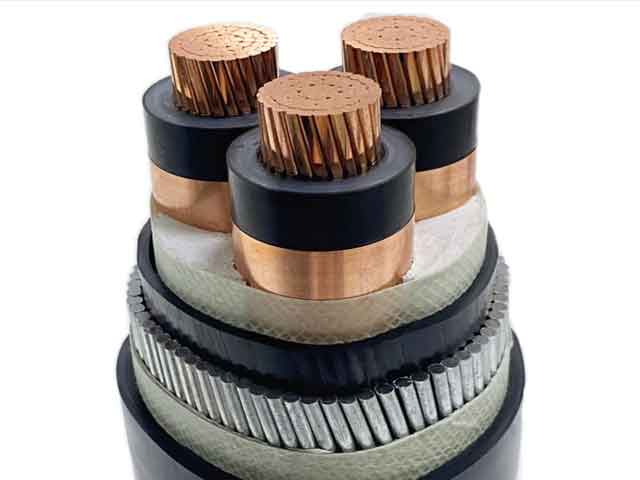

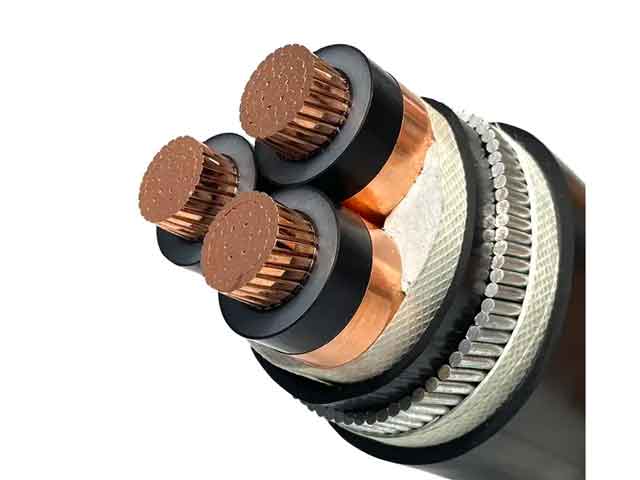

Armoured Copper 11KV XLPE Cable
Armoured Copper 6.35/11 KV XLPE Cable is a copper conductor XLPE insulation PVC sheath armoured cable rated at 6.35/11 KV. Our armoured Copper 6.35/11 KV XLPE Cable is widely used in underground power supply and power distribution system.
Armoured Copper 6.35/11KV XLPE Cable Applications:
Armoured Copper 6.35/11 KV XLPE Cable is a copper conductor XLPE insulation PVC sheath armoured cable rated at 6.35/11 KV. Our armoured Copper 6.35/11 kV XLPE Cables are widely used to distribute power to residential, commercial, and industrial areas. They can also supply power to heavy machinery and equipment in the factories. The armoured Copper 6.35/11 KV XLPE cable can be installed in wet and dry areas. They can be buried directly or be in the cable conduits.
Our armoured Copper 6.35/11 KV XLPE Cable is widely used in underground power supply and power distribution system.
Our armoured Copper 6.35/11 KV XLPE Cable are widely used to supply power to manufacturing factories, refineries, oil & gas plants, mining plants and chemical plants.
Our armoured Copper 6.35/11 KV XLPE Cable is widely used to connect power stations to sub-stations.
Our armoured Copper 6.35/11 KV XLPE Cable is widely used in harsh environments such as tunnels, mines, construction sites, and marine applications.
Armoured Copper 6.35/11KV XLPE Cable Construction Technical Specifications
Standard
IEC 60502-2, IEC60228
Temperature Rating
Fixed: 0°C to +90°C
Minimum Bending Radius
Single core – Fixed: 15 x overall diameter
3 core – Fixed: 12 x overall diameter
Conductor
Class 2 stranded copper conductor according to IEC60228
Outer Sheath Color
Black Or Red

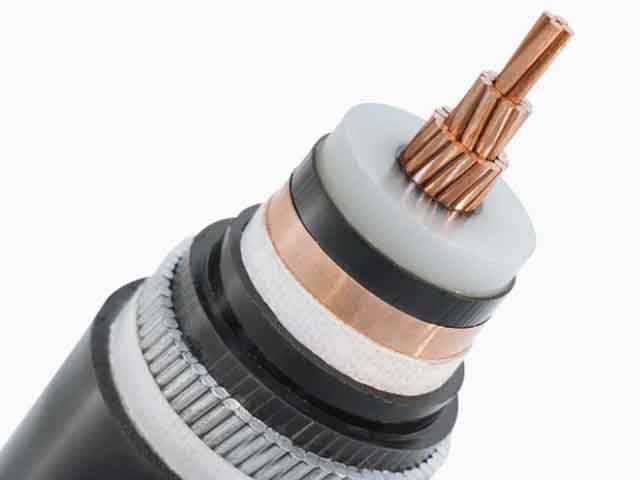

Armoured Copper 6.35/11KV XLPE Cable Construction
Conductor: Class 2 Stranded Circular Compacted Copper
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE (Cross-Linked Polyethylene)
Outer Semi Conductor: Extruded Outer Semi Conductor (Strippable Type)
Metallic Screen: Copper tape with 1 0% overlap
Inner Sheath: PVC (Polyvinyl Chloride)
Armour
Single core: AWA (Aluminium Wire Armoured)

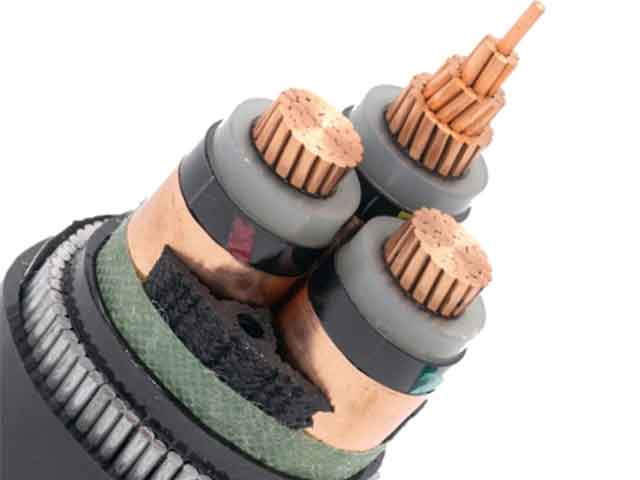

Multi-core: SWA (Galvanised Steel Wire Armoured)
Outer Sheath: PVC (Polyvinyl Chloride)
